9015 (Main series 90)

Steam cleaning (Main application)

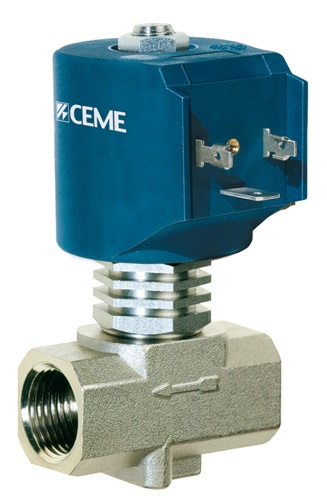

9015
Download Technical specification
STEV90.pdf
Main data
Suitability
Voltages
Applications
Inlet G 3/4
Outlet G 3/4
Operation Pilot operated
Type 2/2 way NC
Seals material PTFE
M.O.P.D. AC 10.00 Bar 145.04 Psi
M.O.P.D. DC 5.00 Bar 72.52 Psi
Minimum differential working pressure 1.00 Bar 14.50 Psi
Ø Orifice 21.00 (mm) 0.83 (inch)
Flow Kv 7.308 (m³/h) 6.300 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Steam cleaning
Other applications Steam ironing
