5925 (Main series 59)

Refrigeration (Main application)

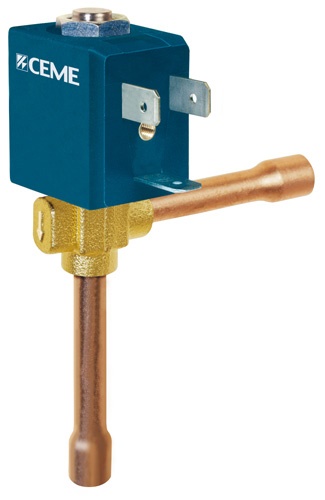

5925
Download Technical specification
STEV59-68.pdf
Main data
Suitability
Voltages
Applications
Inlet ODF 6mm
Outlet ODF 6mm
Operation Direct acting
Type 2/2 way NC
Seals material PTFE
M.O.P.D. AC 25.00 Bar 362.59 Psi
M.O.P.D. DC 8.00 Bar 116.03 Psi
Minimum differential working pressure 0.00 Bar 0.00 Psi
Ø Orifice 2.00 (mm) 0.08 (inch)
Flow Kv 0.093 (m³/h) 0.080 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Refrigeration
Other applications -
