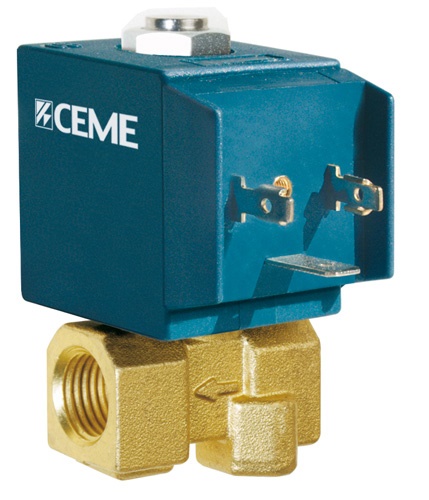

6612 (Main series 66)

Multi purpose (Main application)

6612
Download Technical specification
STEV66.pdf
Main data
Suitability
Voltages
Applications
Inlet G 1/4
Outlet G 1/4
Operation Direct acting
Type 2/2 way NC
Seals material EPDM
M.O.P.D. AC 25.00 Bar 362.59 Psi
M.O.P.D. DC 12.00 Bar 174.05 Psi
Minimum differential working pressure 0.00 Bar 0.00 Psi
Ø Orifice 2.00 (mm) 0.08 (inch)
Flow Kv 1.044 (m³/h) 0.900 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Multi purpose
Other applications -
